Da Ros Watering Boom

Overview

The DaRos watering boom consists of modular aluminium profiles with standard height of 120mm to avoid any bending, independent of greenhouse construction.
The boom runs safely inside the profile without noise thanks to the special Vulkollan wheels. The aluminium profile makes the system light and easy to install.

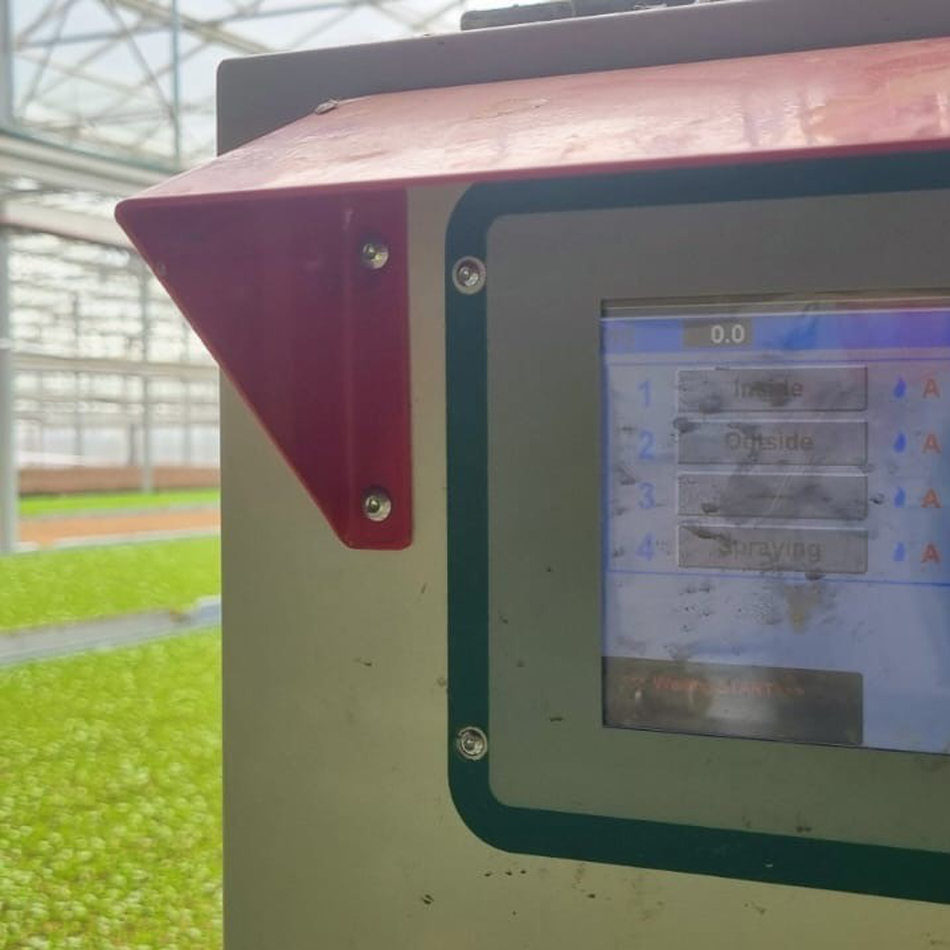

The full control panel with touch screen is easy to follow and allows immediate programming.

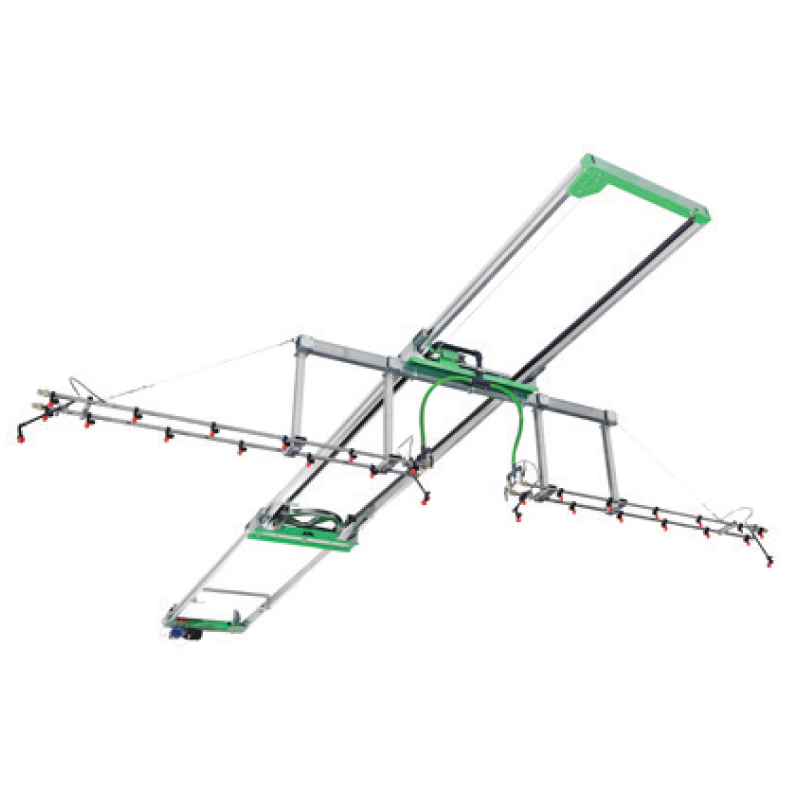

MACHINE COMPOSITION

• Double rail in aluminium with internal wheels running cavity
• Recoil system cart in steel complete with 4 Vulkollan coated bearings
• Irrigation bar pulling bar in steel complete with 4 Vulkollan coated bearings

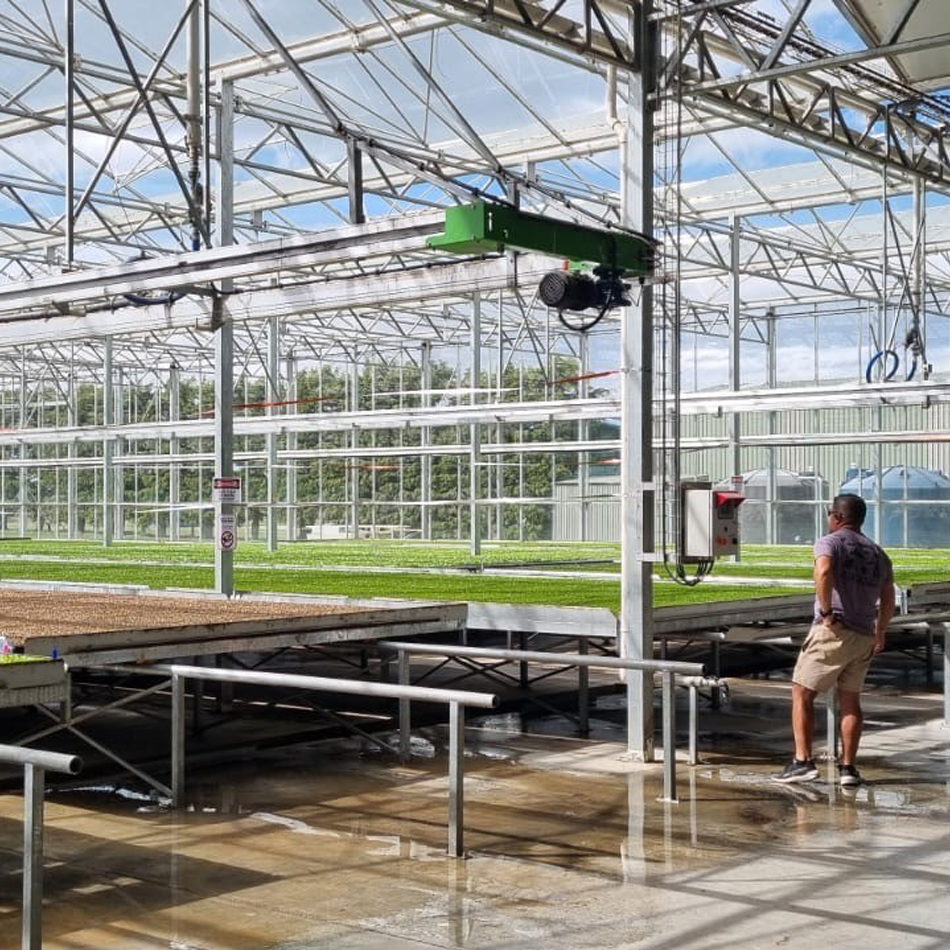

• Self-driven head (Motor 0,37 kW) that activates the steel cable for cart’s pulling
• Watering system with double pipe in stainless steel, adjustable height
• Main water pipe diam. 40mm
• Recoil unit with pulleys
• End switch on both greenhouse and walls
• Manual valves for left and right irrigation
• Self cleaning solenoids
• Extra nozzles on sides

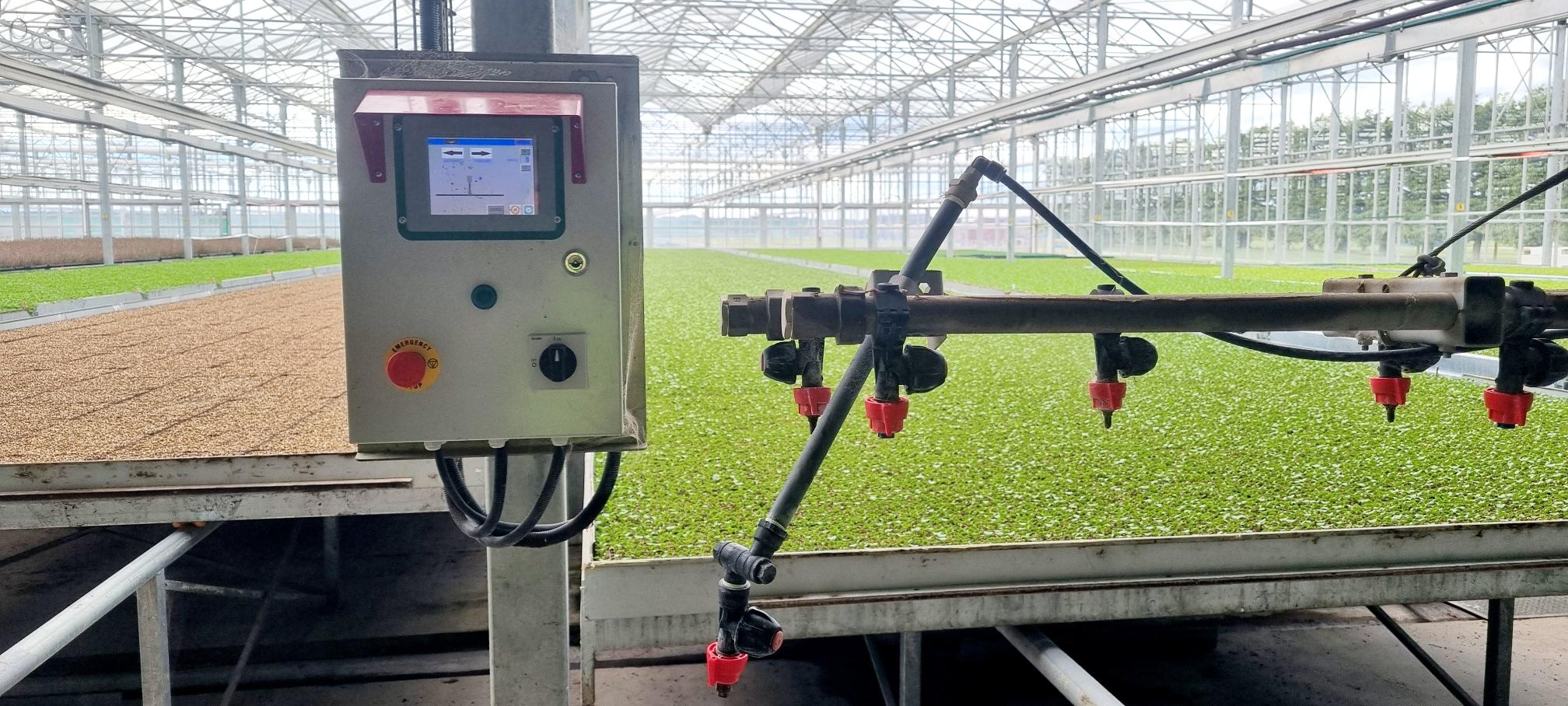

• Control panel with touch-screen display

ACCESSORIES

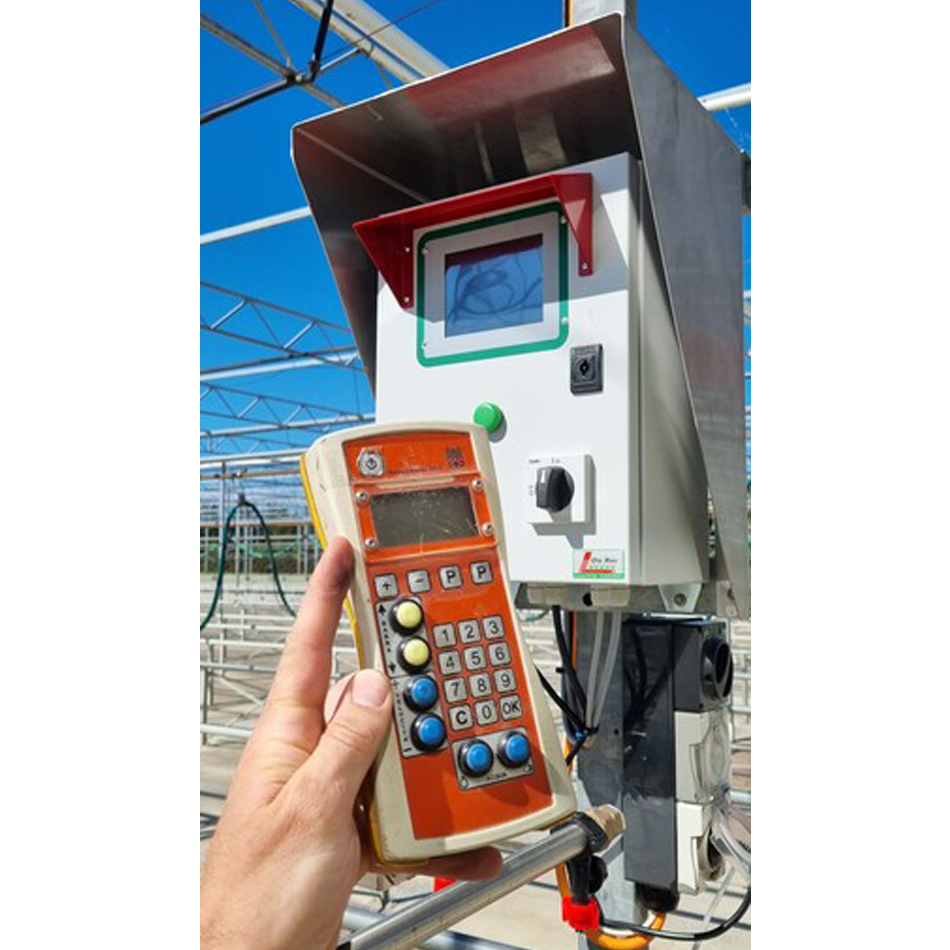

• Remote control
• Multiple remote control

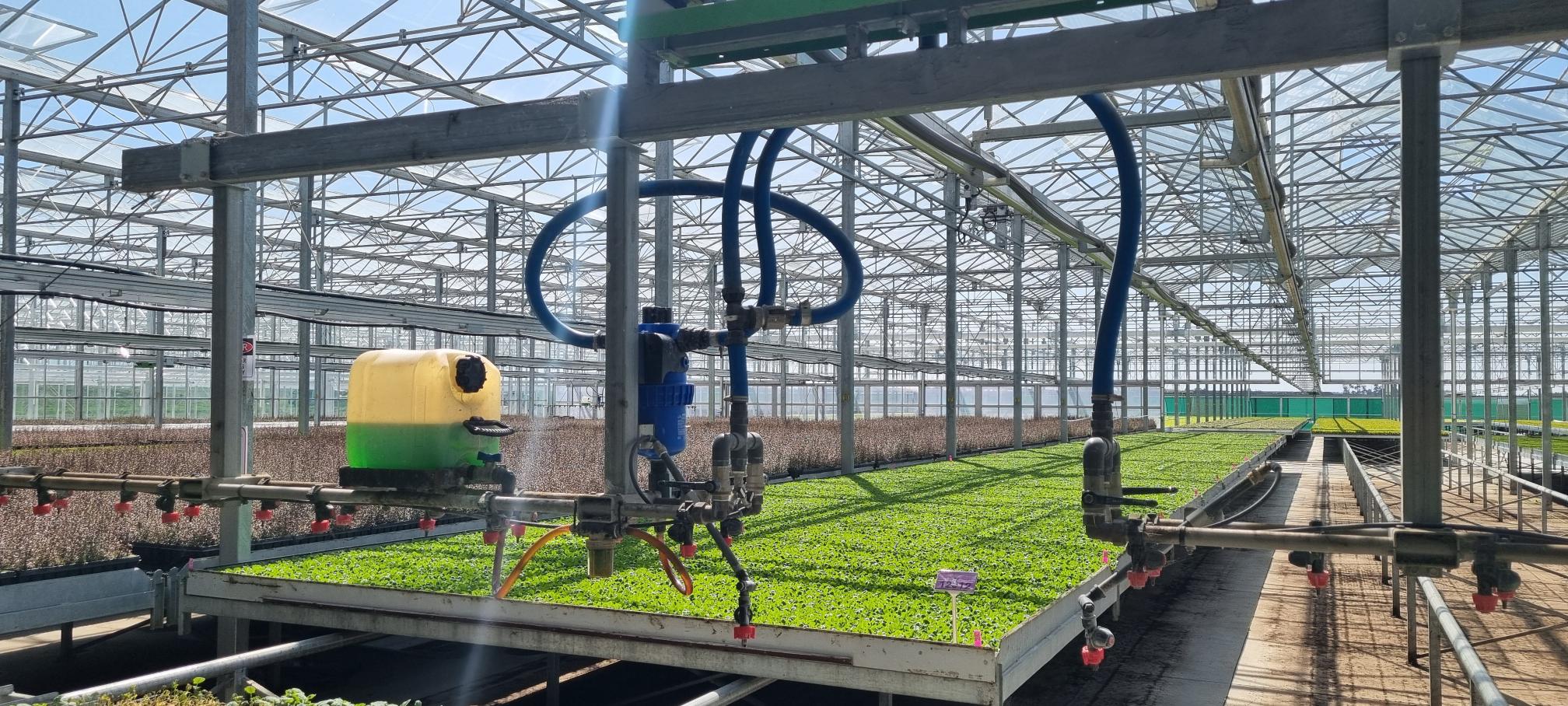

• Dosing unit arrangement
• Independent and adjustable sides nozzles
• Treatment pipe 16 bar max
• Double solenoid for automatic left and right irrigation

FEATURES AND BENEFITS

• Boom structure made of strong, modular 120mm deep aluminium runners that are not heavy or stressful on the greenhouse structure
• Water pipe movement is uniform with the use of the big wheel / recoil system
• The water pipe is barely visible and there is no pipes hanging down affecting access or walkways
• No components that can cause oxidising in the water
• There is no sideways swinging movement, giving a very even watering and no sound when the boom is in operation
• Option of mobile dosing/fertigation unit for each boom and individual spray nozzle that reaches the edges of the greenhouse and internal walkway
• Ability to operate remotely (if specified by the customer)
