Da Ros ALTO Bale Breaker – CT2

Overview

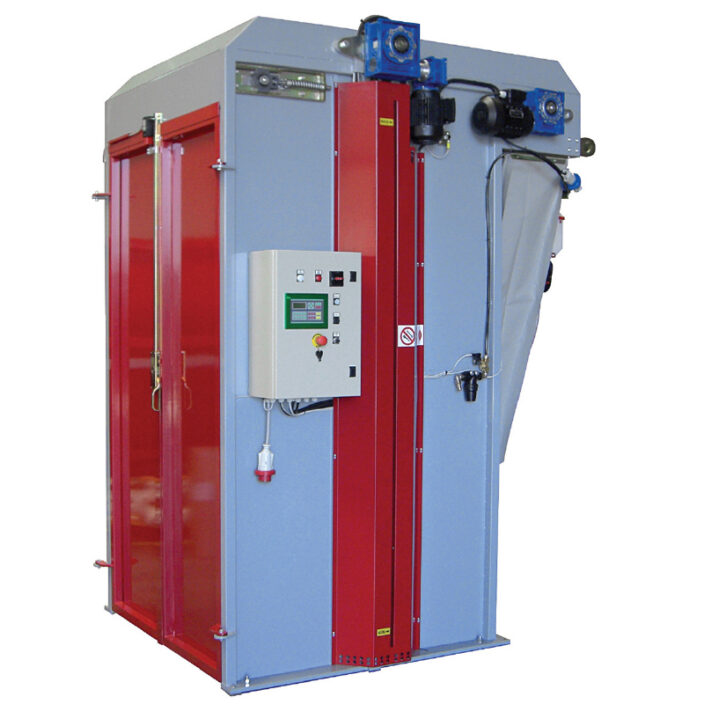

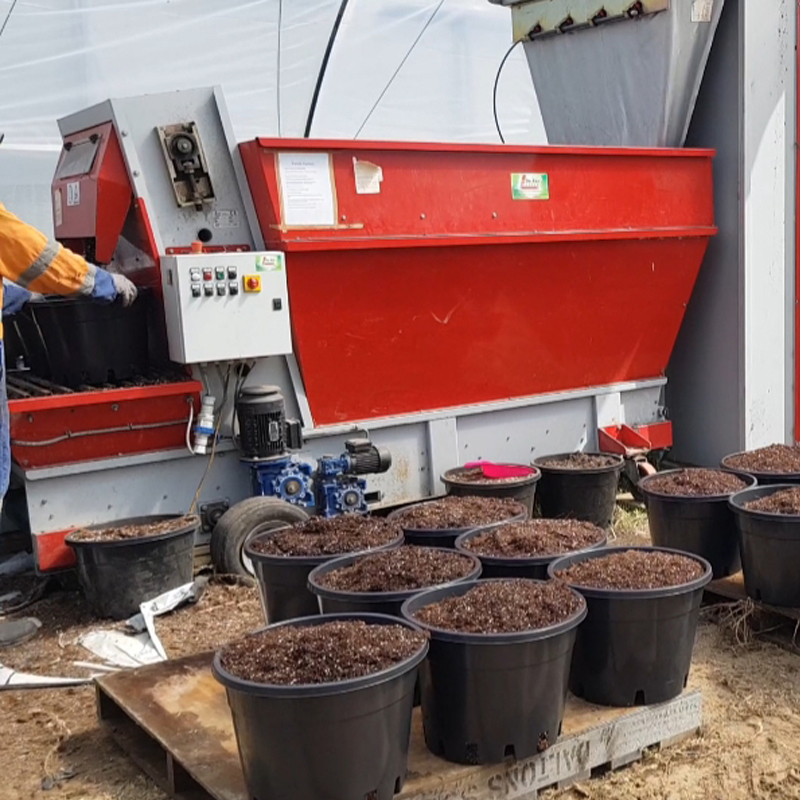

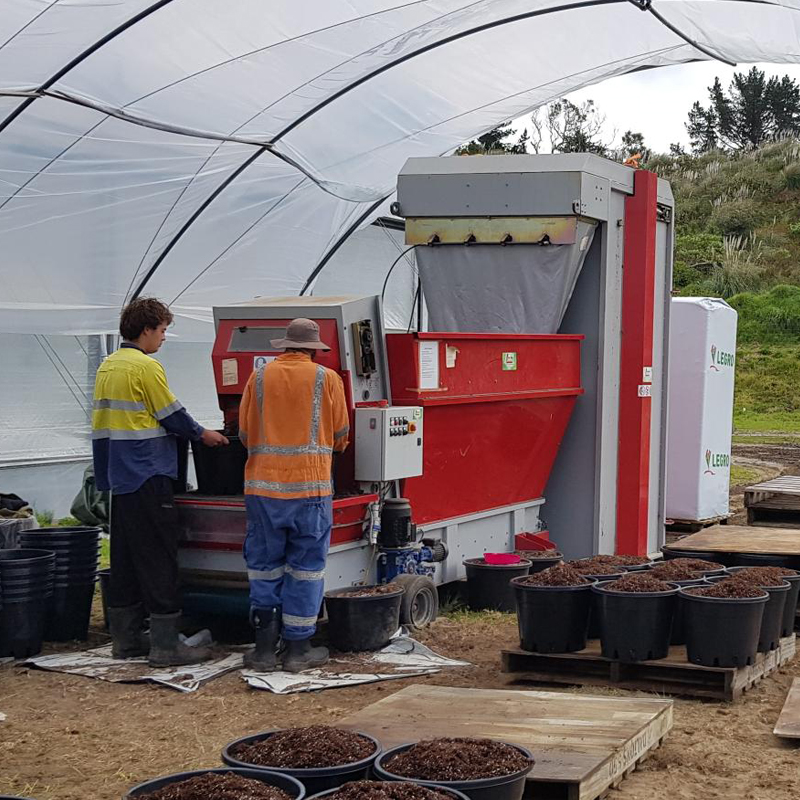

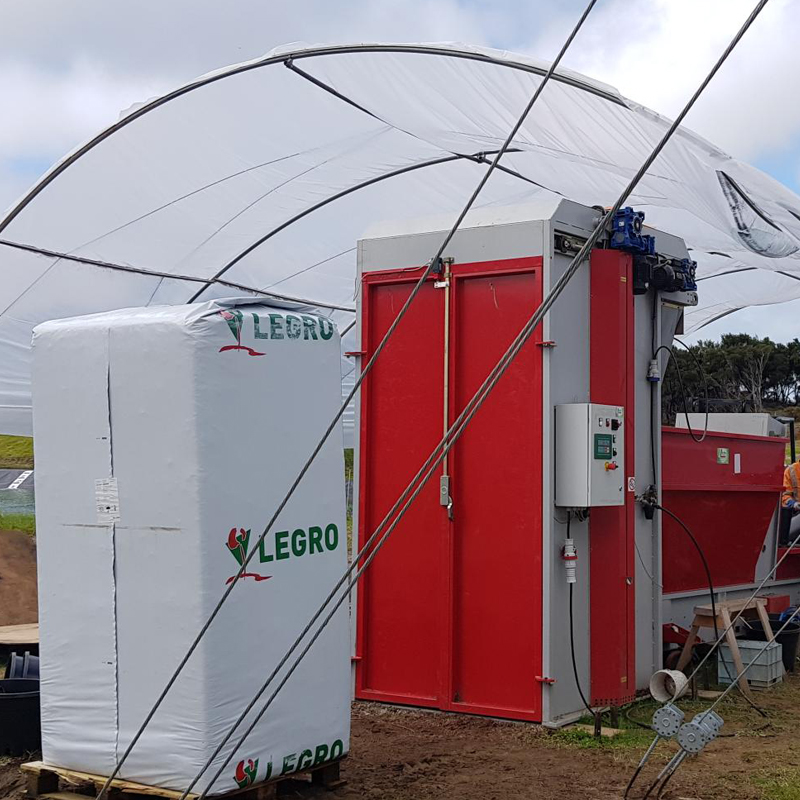

Vertical system for breaking and dosing different kinds of turf compressed into Big Bales. Big Bales can be loaded with manual lifter or forklift truck. The bunker is equipped with electronic control for automatic supply of the media on receiving hoppers (seeding and transplanting lines, potting machines, soil blockers, etc).

MACHINE COMPOSITION • Big Bale lifting platform • Chains with crosspieces • Unloading outlet with level sensor • Doors with safety switch

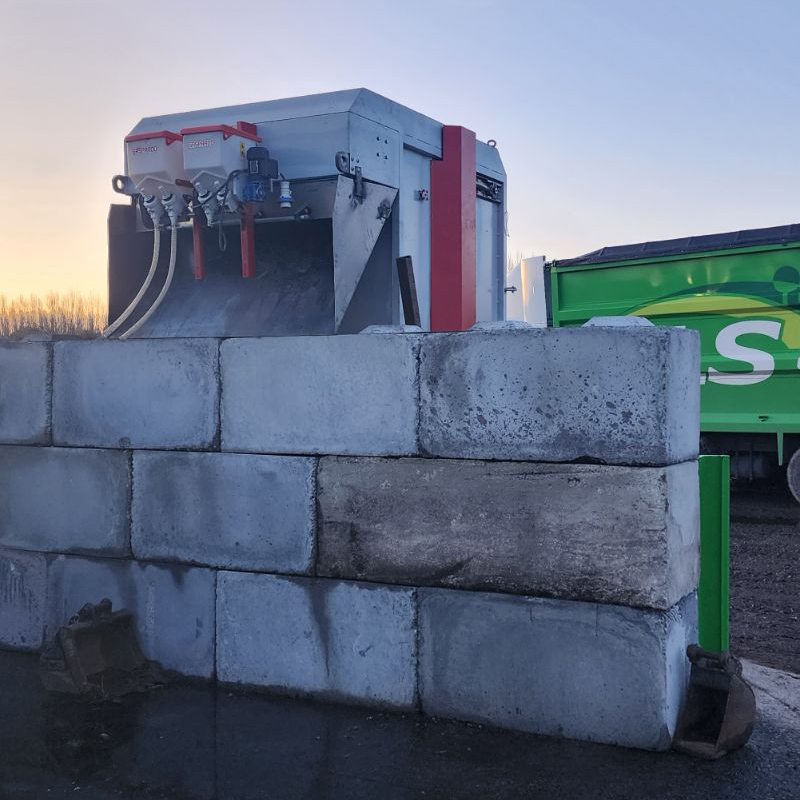

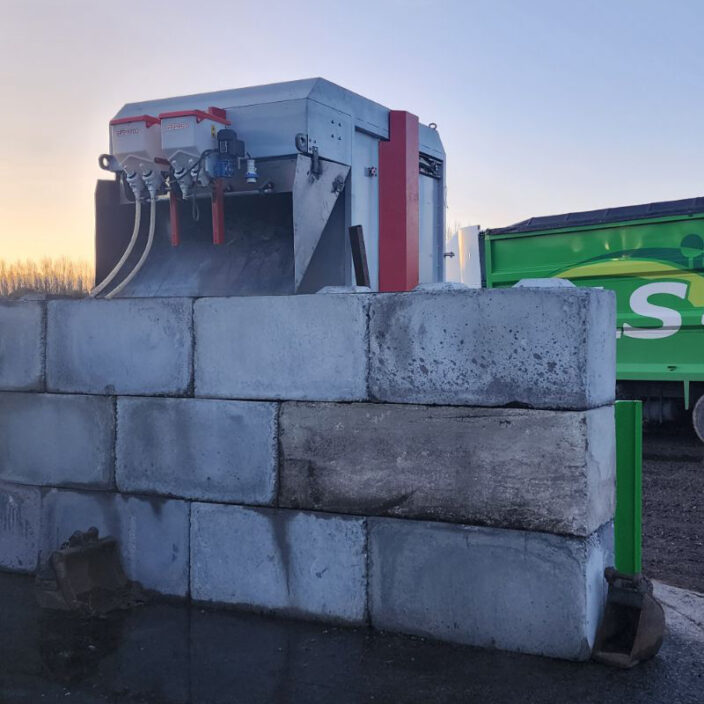

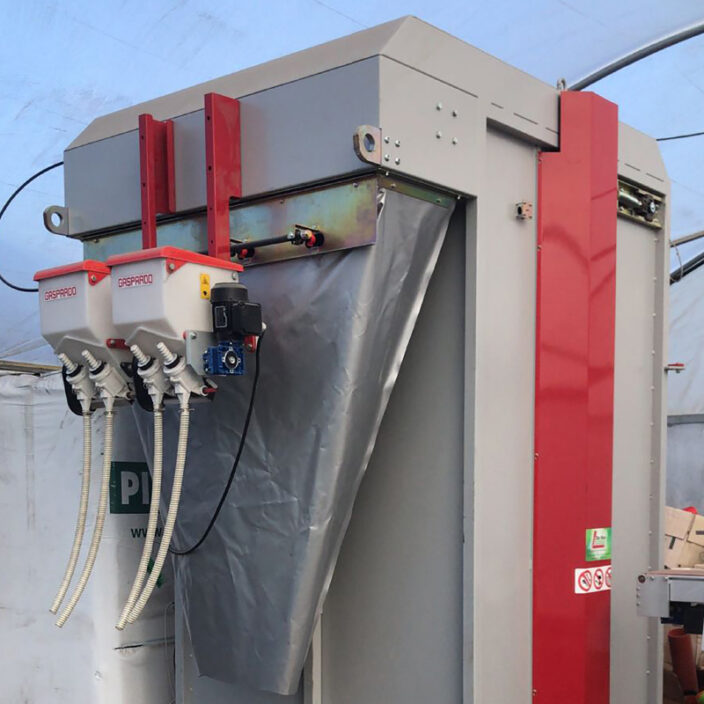

ACCESSORIES • Watering system mod. Bagnatura • Granular fertilizer single or double dispenser mod. GRG • Belt for feeding more machines mod. NS_-CT • Euro pallet adaptors

TECHNICAL DATA:

• Maximum Production: 5 cycles per hour
• Maximum Dimentions of Big Bale: 1200 x 1150 x 2400 to 2650mm
• Installed Power: 2,7 kW, 400 V, 3PH+N+E, 50 Hz
• Weight: 1350 kg
• Options Available for Bales: 2.0, 2.4 and 2.65m high
