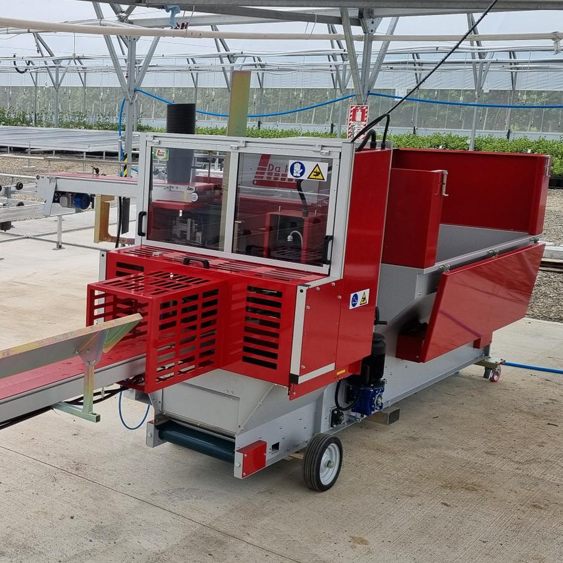

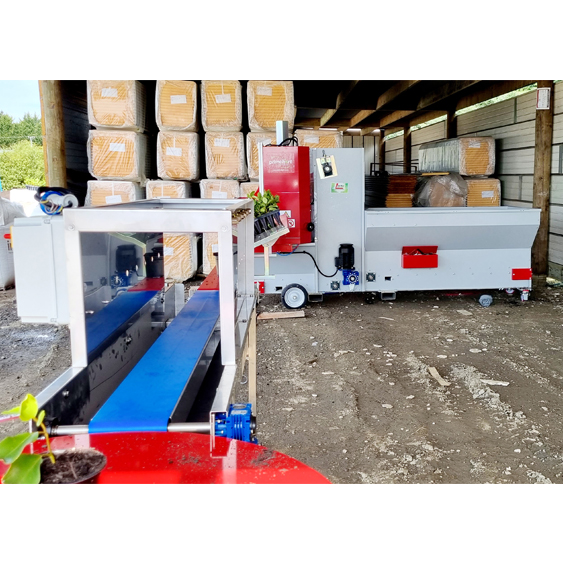

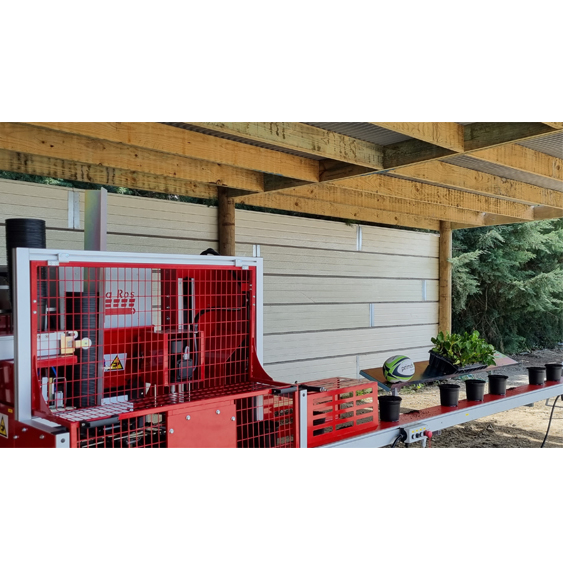

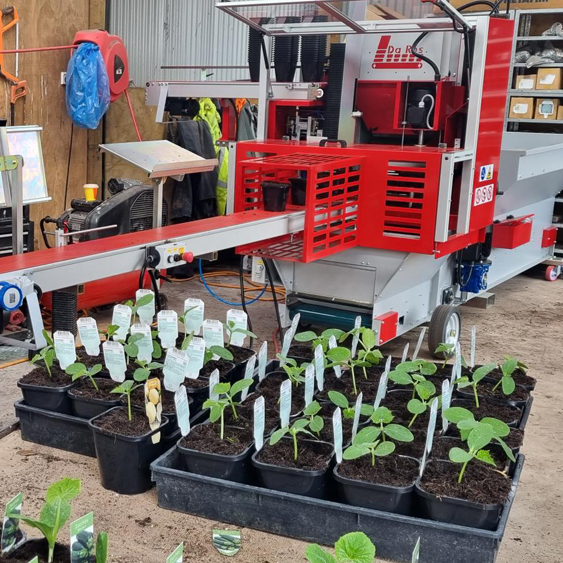

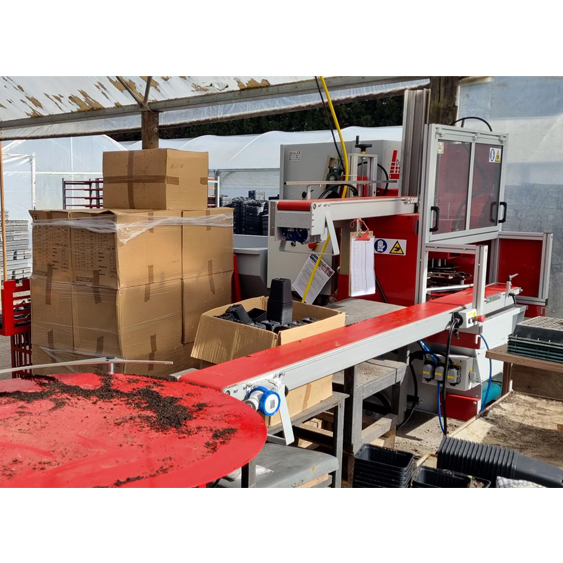

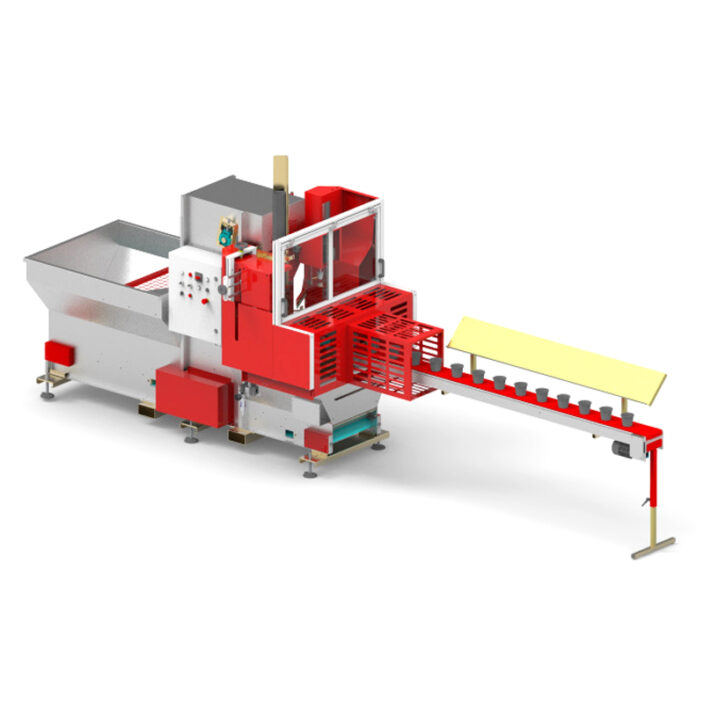

Da Ros Potting Machine I3-P

The Da Ros Potting Machine I3-P is one of the most popular potting machines for New Zealand growers, valued for its strong focus on operator safety, flexibility, and excellent value for money. Designed for hard-working plant producers, it offers reliable performance across a wide range of potting applications.

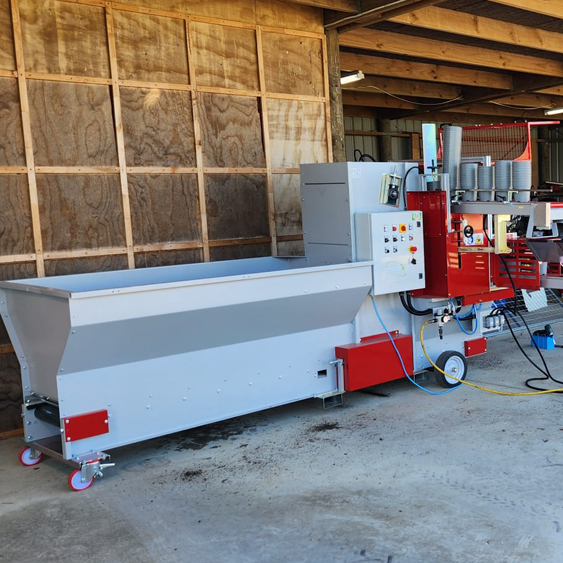

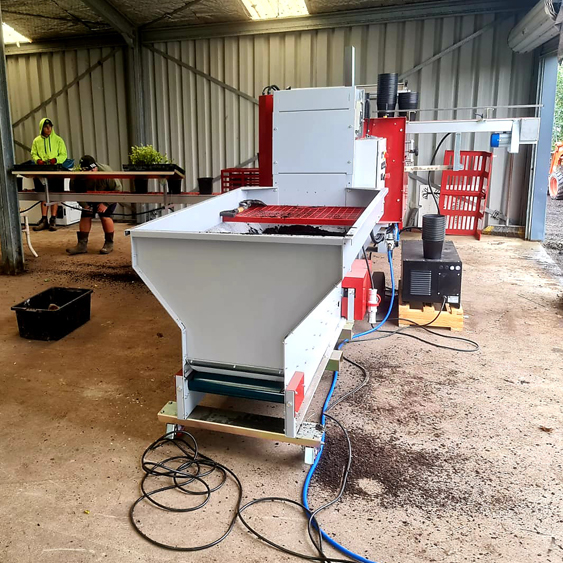

The machine comes standard with a 1000L hopper, with an option to increase to 1500L, with fold-down sides so it can be easily loaded from either side. Soil feed speed is adjusted via a mechanical speed dial, allowing operators to fine-tune output to suit different soil types and pot requirements. Long-life stainless steel soil elevator paddles ensure durability in demanding nursery environments.

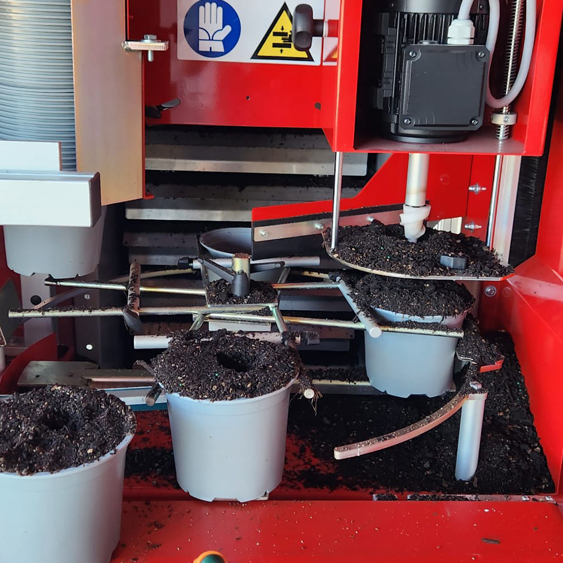

An autom atic pot in-feed conveyor continuously reloads the pot magazine during operation, while the simple pot sizing adjustment and pneumatic pot de-nester accommodate pots from 8–20cm diameter. As pots move around the carousel, they are de-nested, filled with soil, and drilled to the required depth, ready for planting. Drill hole size and depth are quick and easy to adjust. With a potting capacity of up to 2,500 pots per hour, the I3-P is a dependable, versatile solution for medium to large nurseries looking to balance productivity, safety, and cost.

KEY FEATURES

• Popular, proven potting machine for NZ growers
• 1000L hopper. Optional 1500L with fold-down sides
• Pneumatic pot de-nester with easy pot size adjustment
• Adjustable soil feed speed via mechanical dial
• Automatic pot in-feed conveyor for continuous operation
• Drill kit with adjustable drill size and depth
• Reliable, safe operation for busy nursery environments

STANDARD MACHINE COMPOSITION

• 1000L hopper
• Pneumatic pot de-nester
• Easy pot size adjustment
• Drill kit (3–9cm)
• 3m pot take-off conveyor with 1200mm tray holder
• 1.2m pot in-feed conveyor

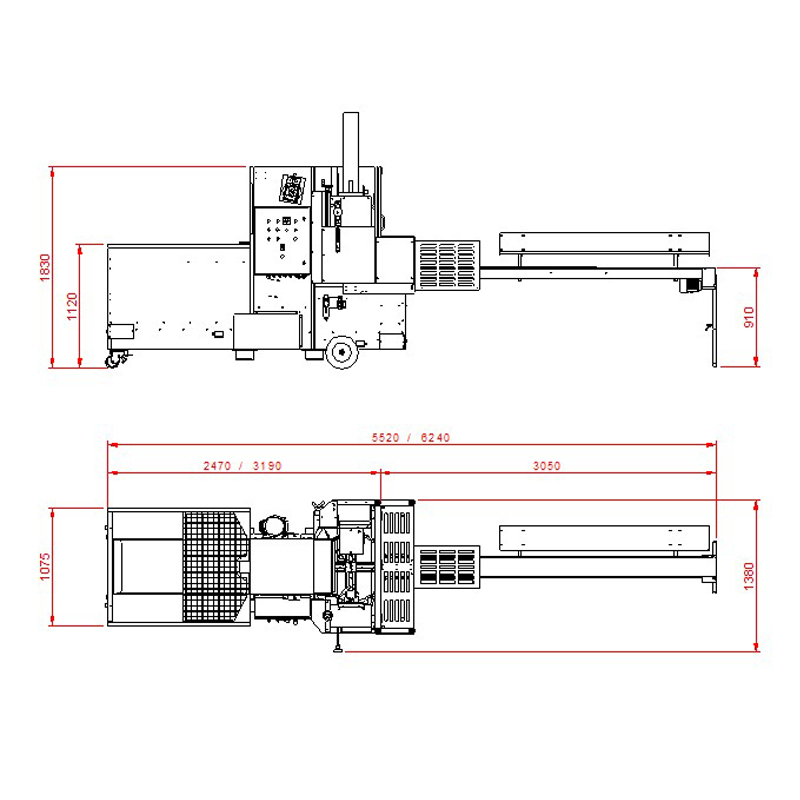

TECHNICAL DATA

• Pot diameter: 8–20cm
• Potting capacity: up to 2,500 pots/hour
• Potting belt length: 3–6m
• Hopper capacity: 1000-1500L
• Air consumption: 80–150 L/min
• Installed power: 2.2kW, 400V, 3P+N+T, 50Hz
• Weight: 630kg
