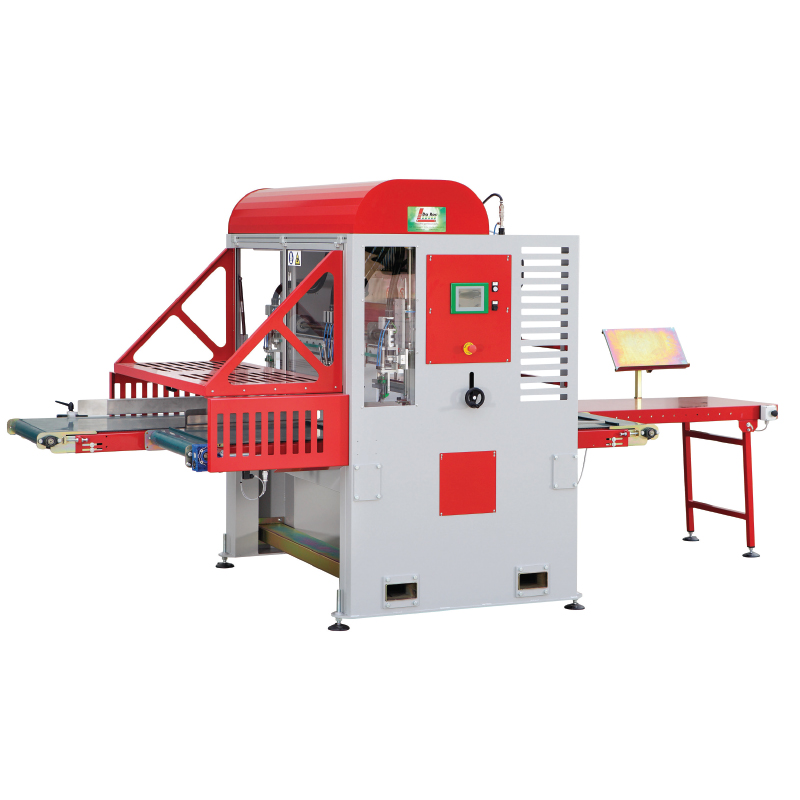

Da Ros Transplanter TP-M

Overview

The DaRos Transplanter TP-M is a smart investment for nursery efficiency, precision planting, reduced labour costs, and overall improvements to productivity.
This innovative electronic machine can be equipped with up to 16 self-driving, double movement fingers, which allows customers to achieve uniformity in plant spacing and depth, leading to consistent, healthier growth.
Compatible with a wide range of nursery trays, the quality Da Ros Transplanter TP-M allows growers to handle larger volumes of plants and scale-up their operations for greater profitability.
Our specialised Nursery Automation team can install, provide staff training and strong after-sales care.
Get in touch to find out more.
FEATURES

• Effortlessly transplants into nursery trays.

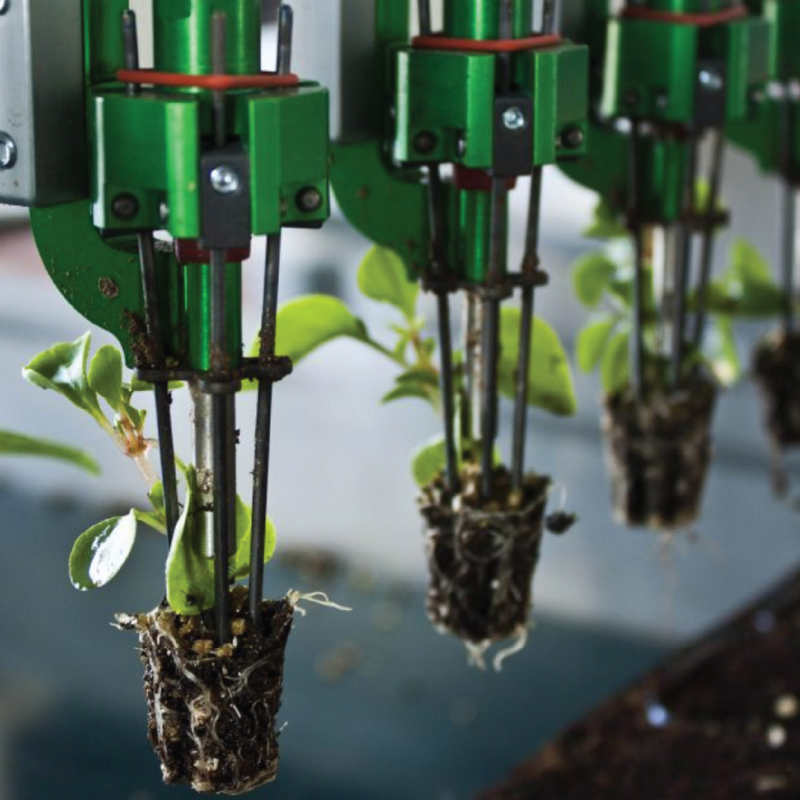

• Can be equipped with 10 self-driving double-movement fingers for uniform transplanting.
• The TP-M fingers move in a perpendicular direction to the conveyor, filling trays.
• Easy adjustments enable this machine to quickly adapt to most grades of Nursery Trays.
• Customised software allows complete emptying of the plants from the donor trays.
• Adjustable settings to suit working speed, pick-up and transplanting depth, plant height, and more. All settings are adjustable from the colour touch screen control panel without stopping the machine stop.
• The transplanting machine can be connected to a DaRos Trayfiller.

MACHINE COMPOSITION

• Support frame
• Finger group holding axle
• Independent self-driven double-movement fingers
• Tray transport belt in pick up, 700mm width
• Tray transport belt in deposit, 700mm width
• Plate to collect transplanted trays

ACCESSORIES

• Tray inserter mod. ICR
• Tray inserter mod. IC2
• Watering belt mod. NB4

TECHNICAL DATA

• Transplanting capacity: up to 1200 plants per hour per finger
• Number of fingers: up to 16
• Maximum tray size in pick-up and deposit: 700 x 500 x 130mm
• Installed Power: 1.2 kW, 230 W, 1Ph, 50 Hz
• Air Consumption: 100 L per minute ca.
• Weight: 600kg
