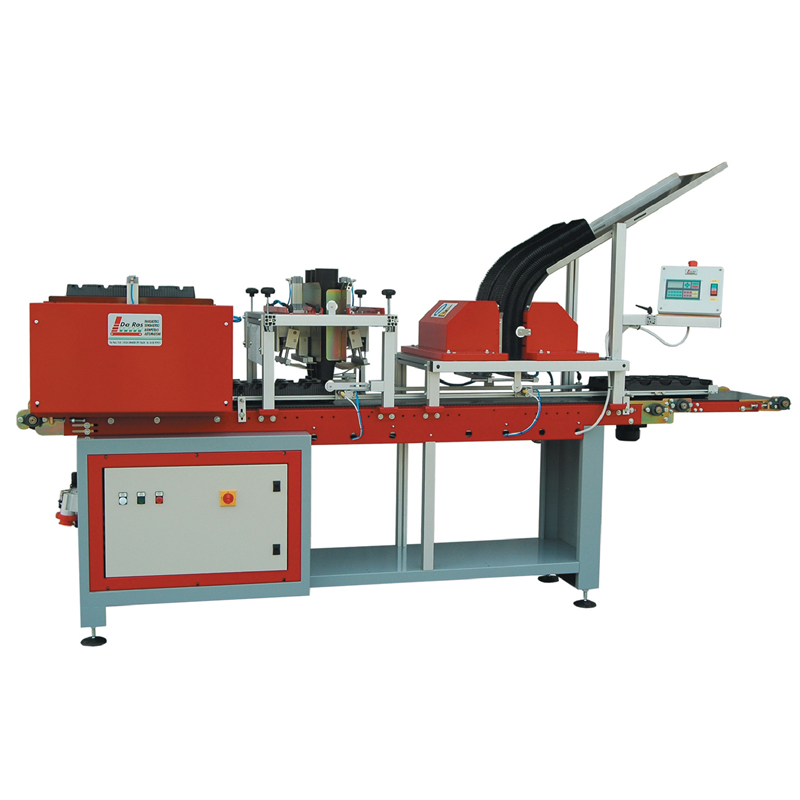

Da Ros Destacker A7

Overview

Destacker with electronic control suitable for inserting packs or pots into shuttle trays. It’s an electro-pneumatic operating machine and the tray is positioned by the step transport belt movement. This machine allows use of different types of trays (also with staggered holes) and is equipped according to the type of packs or pots to destack. Considering its high rate of production and its electronic speed control, this destacker can directly feed seeding or transplanting lines, thus eliminating handling and storage of trays.

MACHINE COMPOSITION • Tray transport belt • Tray destacker • Single or double pots or packs destacker

ACCESSORIES • Stacker with belt mod. IN • Automatic unloading system of stacks on rolling table mod. SSP • End rolling table mod. RS

TECHNICAL DATA

• Production Capacity: 200 to 600 trays per hour
• Maximum Tray Size: 600 x 400 x 800mm
• Maximum Packs Size: 200 x 200 x 80mm
• Diameter of Pots: From 8 up to 14cm
• Installed Power: 0,5 kW, 400 V, 3PH+N+E, 50Hz
